SODIUM-ION HOME ENERGY STORAGE
W16-5S Sodium-ion Home Battery
15.36 kWh of floor-standing storage for residential solar, backup power and flexible daily energy use. Built around a 48 V sodium-ion battery platform with room to expand.
Nominal energy
Battery platform
Enclosure protection
More Stored Energy. More Ways to Use It.
Bring solar generation, backup needs and changing household demand into one storage plan.
01
15.36 kWh in One Unit
A high-capacity home battery for projects that need more stored energy from a single floor-standing enclosure.
02
Expand with Demand
Connect up to 20 units in parallel for a total nominal energy capacity of 307.2 kWh, subject to system design.
03
Protected for Everyday Operation
An integrated battery management system provides overcharge, overdischarge and short-circuit protection. The IP65 enclosure suits indoor or sheltered outdoor installation.
04
Built for a Broad Climate Range
Specified for discharge from −40°C to 60°C and charging from 0°C to 55°C, with natural convection cooling.
A Closer Look
Three-quarter view

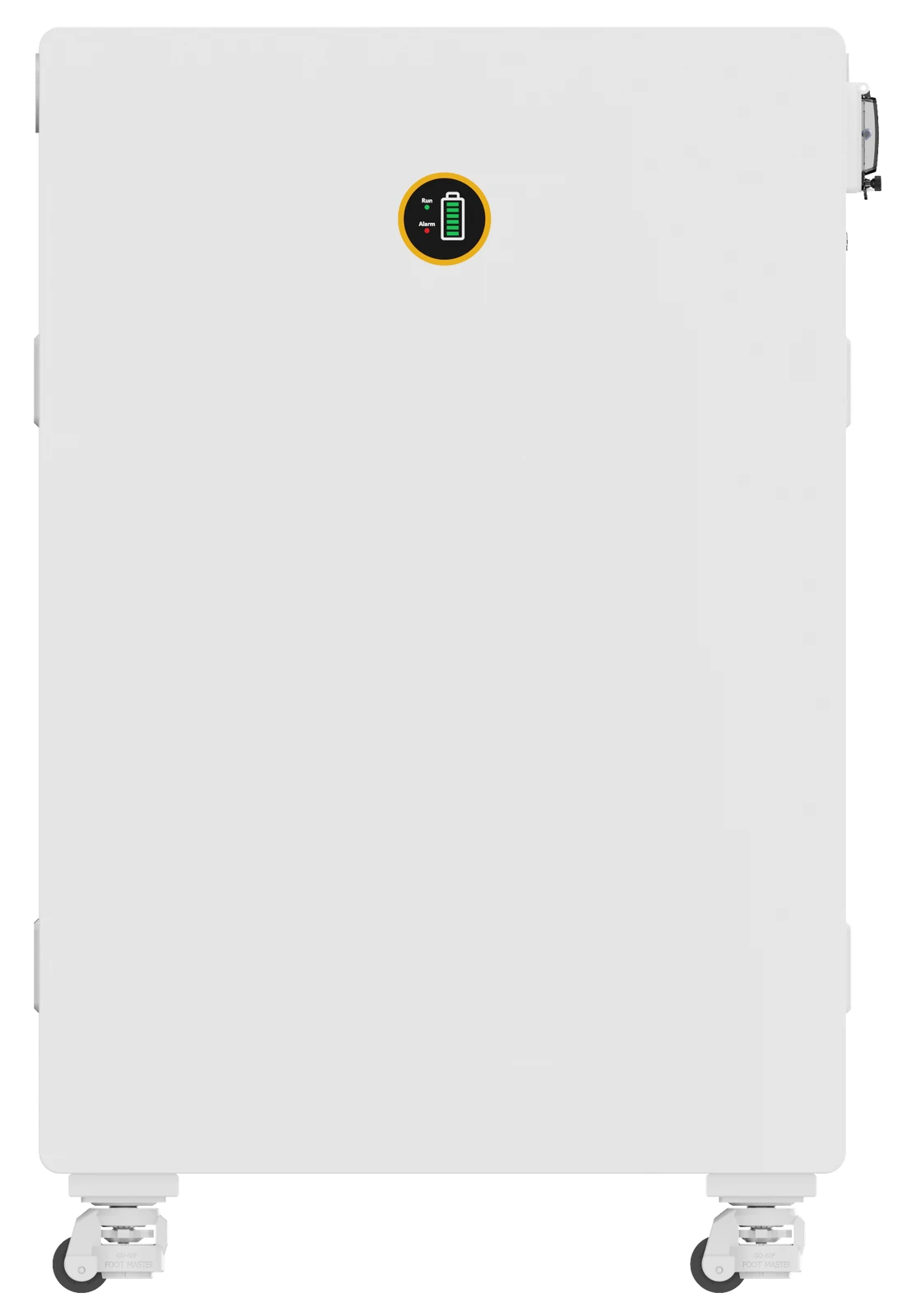

Front view

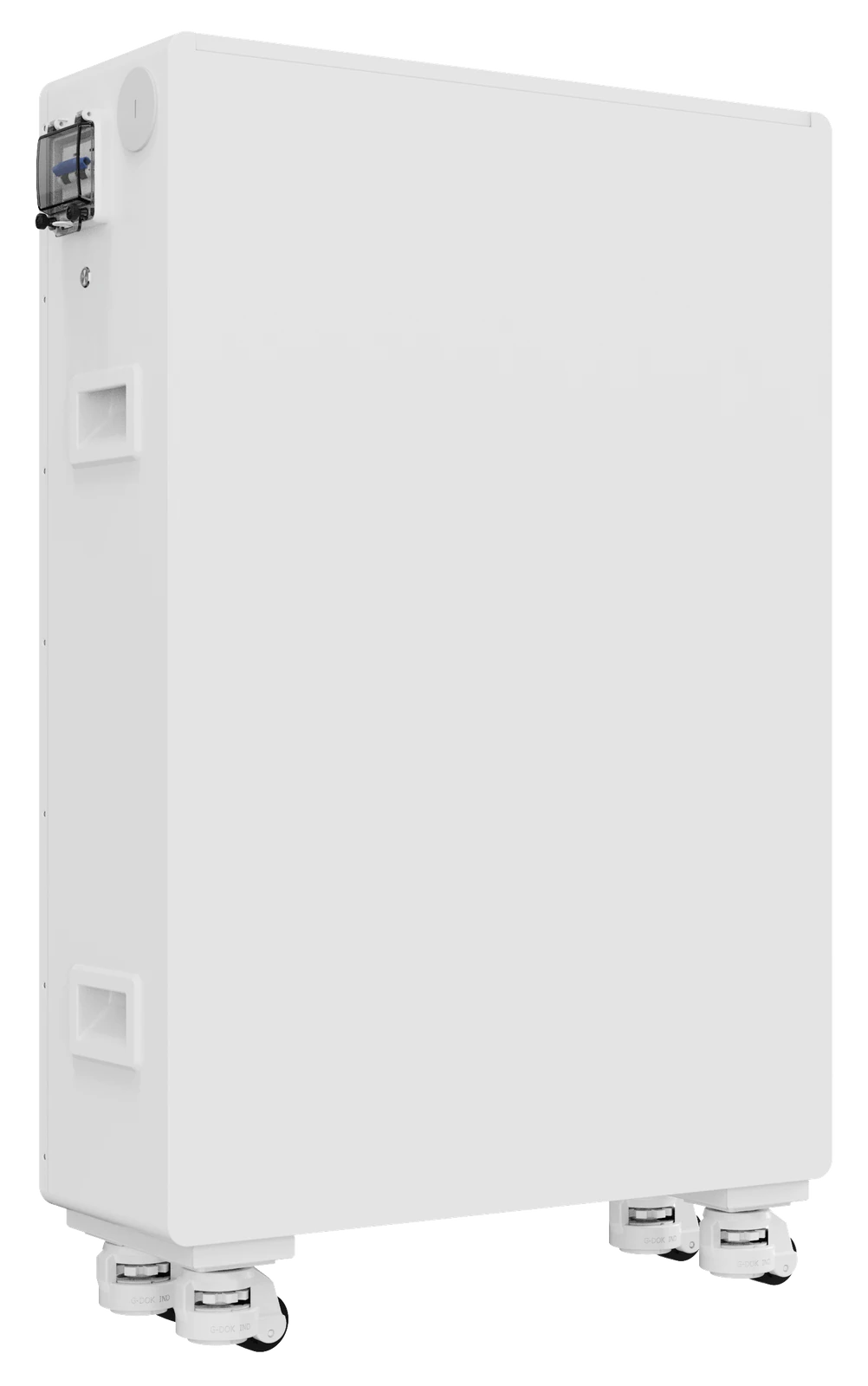

Rear & connection view
FLOOR-STANDING DESIGN
Plan a Dedicated Place for Home Energy

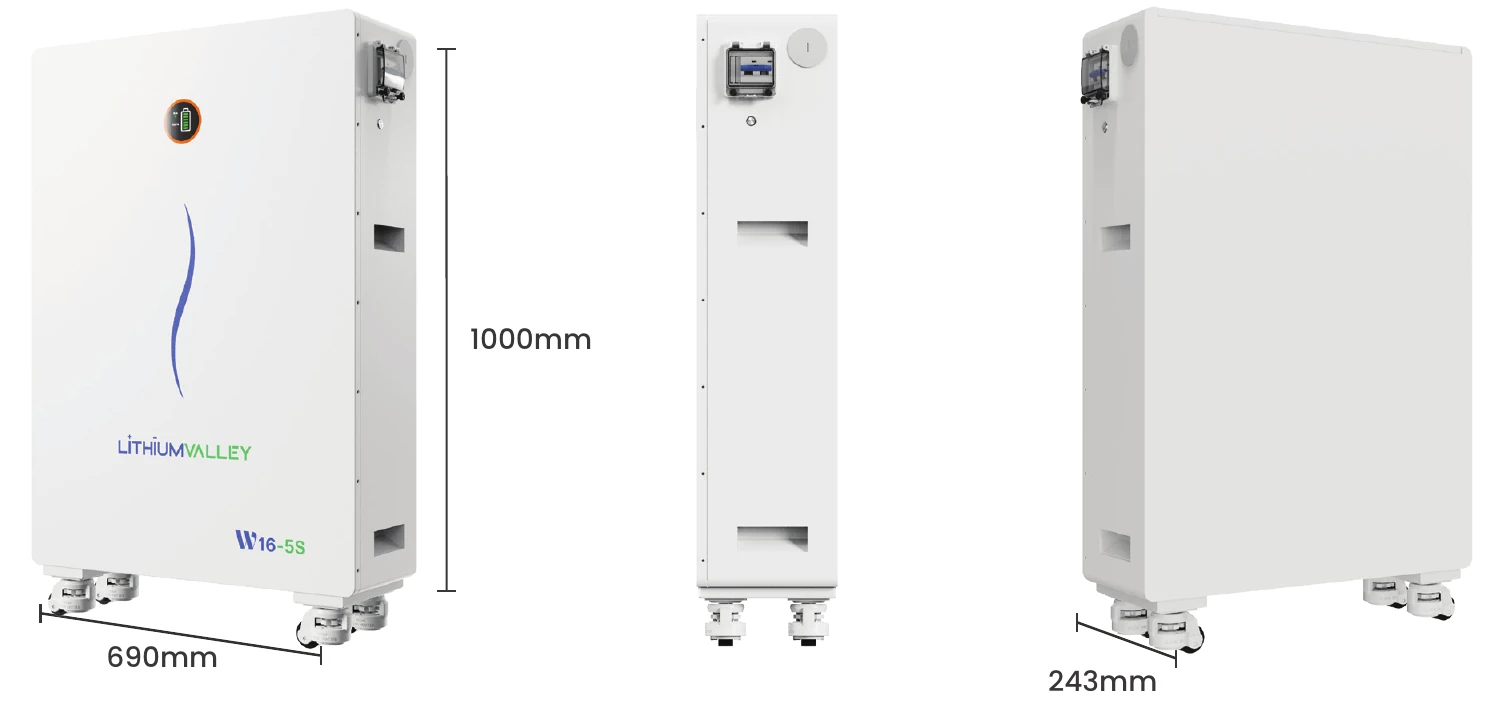

The W16-5S stands on the floor with a 690 mm wide, 243 mm deep enclosure. Position it indoors or under outdoor eaves, with the clearances and supporting surface required by your installer.
Approximately 188.2 kg
RESIDENTIAL ENERGY APPLICATIONS
Storage That Fits Your Energy Plan
Use More of Your Solar
Store daytime solar energy for later household use through a compatible inverter and energy management system.
Plan for Power Interruptions
Add battery storage to a correctly configured backup system, with supported loads and runtime matched to the household.
Manage Daily Energy Demand
Schedule charging and discharging to suit household routines and local time-of-use tariffs, where available.
Application images are illustrative.
SYSTEM INTEGRATION
Connect Storage to the Right Inverter
RS232, CAN and RS485 interfaces support battery-to-system communication. Share your inverter model and project requirements with our team to confirm the appropriate configuration.
W16-5S AT A GLANCE
Technical Specifications
Review the battery specifications and download the product datasheet for your project.
Cycle life is a laboratory rating at 80% depth of discharge, 25°C and 0.5C. Actual performance depends on operating conditions and system configuration. Specifications are subject to change.
Frequently Asked Questions
What is the W16-5S designed for?
The W16-5S is a 15.36 kWh sodium-ion battery for residential energy storage. With a compatible inverter, it can be used for solar self-consumption, backup power and scheduled energy use. It is a battery unit and requires the appropriate external system equipment.
How much storage can I add in parallel?
The product supports up to 20 units in parallel, giving a maximum total nominal energy capacity of 307.2 kWh. The final configuration, wiring and inverter capacity must be checked for the project.
Can the battery charge in freezing weather?
The specified charging range is 0°C to 55°C. The wider −40°C to 60°C range applies to discharge only. Installation and system controls must keep charging within the permitted temperature range.
Where can the floor-standing unit be installed?
The specified installation environment is indoors or under outdoor eaves. The enclosure is rated IP65. A qualified installer should confirm the supporting surface, access, clearances and site conditions for the approximately 188.2 kg unit.
How do I check inverter compatibility?
Send us the inverter brand, model and intended operating mode. The battery provides RS232, CAN and RS485 interfaces, but the communication protocol and system configuration must also match the selected inverter.
What does the 9,000-cycle rating mean?
The datasheet specifies 9,000 cycles at 80% depth of discharge, 25°C and a 0.5C rate. This is a laboratory rating; actual battery life depends on temperature, operating profile and system management. It does not define a fixed number of service years.
LET'S BUILD YOUR SYSTEM
Build Your Next Home Storage Project
Tell us your market, inverter model and required storage capacity. Our team can help with W16-5S product information, system configuration and project pricing.
Battery installation, inverter selection and system commissioning should be completed by a qualified installer. Confirm inverter model and communication compatibility before ordering.
