W10-5A | LiFePO4 Home Battery

W10-5A 51.2V 200Ah 10240Wh LiFePO4 battery for home energy storage.

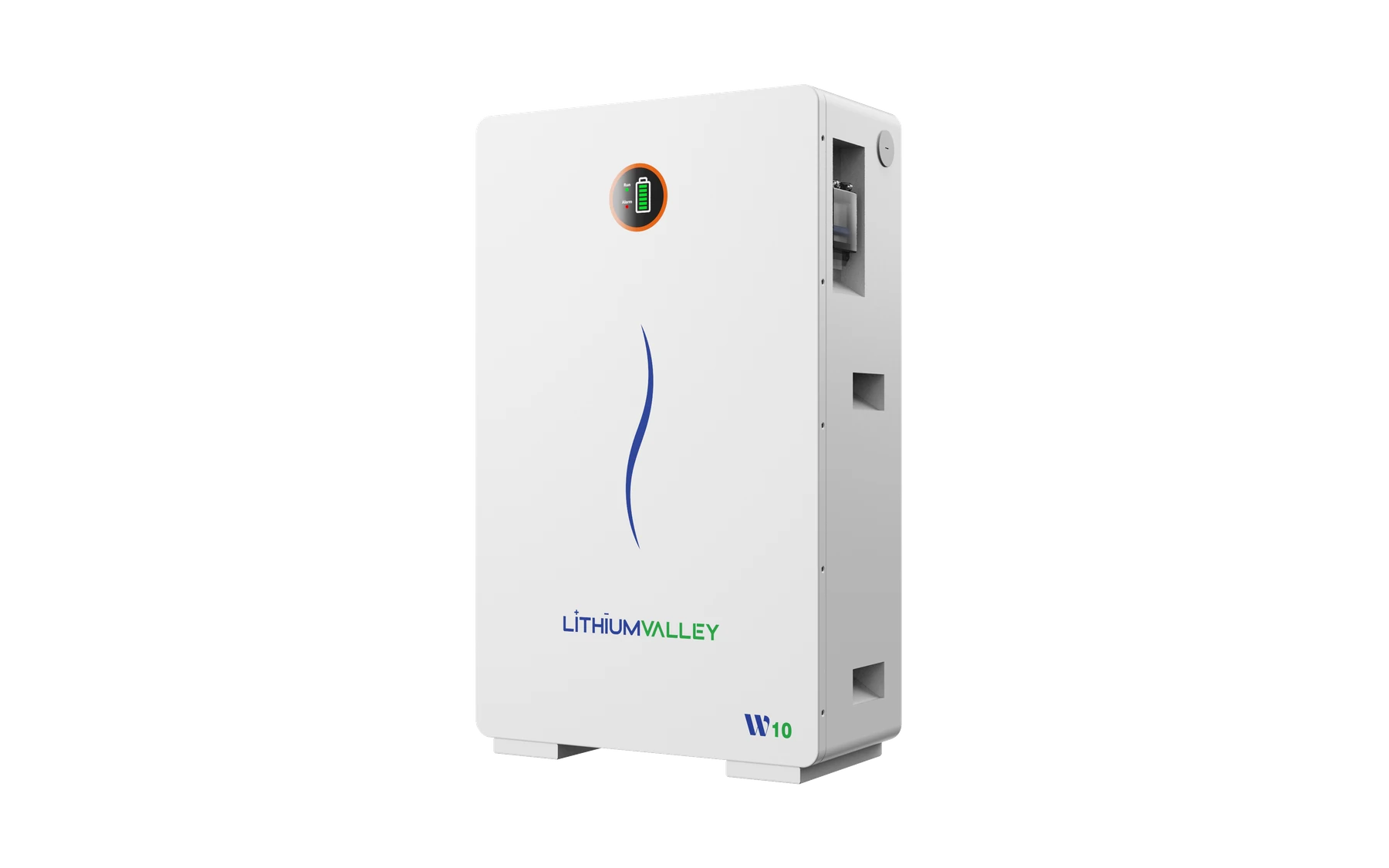

W10-5A front three-quarter view without wheels

TECHNICAL SPECIFICATIONS

MODEL

W10-5A

CAPACITY

NOMINAL CAPACITY

200Ah

RATED CAPACITY

NOMINAL ENERGY

RATED ENERGY CAPACITY

RACK RATED ENERGY CAPACITY

BATTERY CONFIGURATION CAPACITY

CELL TECHNOLOGY

Lithium Iron Phosphate (LFP)

CELL SPECIFICATION

NOMINAL VOLTAGE

51.2V

OPERATING VOLTAGE

44.8~57.6V

VOLTAGE RANGE

MPPT INPUT VOLTAGE

RATED POWER

RATED OUTPUT POWER

RATED AC POWER

MAX. AC OUTPUT ACTIVE POWER

MAX. ALLOWABLE INPUT POWER

OUTPUT POWER FACTOR

EFFICIENCY

MAX. EFFICIENCY

MAX. ROUND-TRIP EFFICIENCY

THDi

MAX. CHARGE/DISCHARGE CURRENT

INSTANTANEOUS DISCHARGE CURRENT

250A 10S

DEPTH OF DISCHARGE (DoD)

DIMENSIONS (W × D × H)

WEIGHT

96.6kg (excluding wheels)

BATTERY IMPEDANCE

RESISTANCE

OPERATING TEMPERATURE

DISCHARGING TEMPERATURE

-20 to 60 °C

IP RATING

IP65

CYCLE LIFE

8000cycles@80%DOD, 25°C/0.5C

COMMUNICATION

CAN/RS485/RS232

CERTIFICATION

UN38.3, MSDS, CB, CE-EMC

STANDARDS

CHARGING & INVERTING INTEGRATED MACHINE

MPPT

DCDC

LITHIUM BATTERY

12V MULTI-FUNCTION MODULE

CONTROL PANEL

WATER LEVEL SENSOR

APP

RATED VOLTAGE

RECOMMENDED CHARGE/DISCHARGE CURRENT

100A

MAXIMUM CONTINUOUS CHARGE/DISCHARGE CURRENT

PEAK DISCHARGE CURRENT

NET WEIGHT (APPROXIMATE)

CHARGING TEMPERATURE

With heating function: -20~55°C; Without heating function: 0~55°C

WI-FI MODULE

ACTIVE FIRE PROTECTION SYSTEM

OPTIONAL ACCESSORIES

CAPACITY EXPANSION

ADVANTAGES

INSTALLATION METHOD

Wall mount or floor

ENERGY

10240Wh

SCALABILITY

Up to 20units

EXPANSION FUNCTION

Single-pack level heat aerosol fire extinguishing device / Heating function / Bluetooth / Wheels (optional)

STANDARD CHARGE/DISCHARGE CURRENT

200A

CONVERSION EFFICIENCY

99%, 25°C/0.5C

WORKING ENVIRONMENT

Indoors/under the outdoor eaves

STORAGE TEMPERATURE

Between 20°C and 45°C within three months; 25 ± 3°C for more than three months

STORAGE HUMIDITY

65+20%RH

ALTITUDE

≤3,000 m

COOLING METHOD

Natural Convection

DIMENSIONS (L × W × D)

780*470*227mm (excluding wheels)

WEIGHT (APPROXIMATE)

DIMENSIONS (L × W × H)

SINGLE MODULE SPECIFICATION

MODULE / HV BOX / BASE DIMENSIONS (L × W × H)

MODULE / HV BOX / BASE WEIGHTS

BATTERY MODULE RATED VOLTAGE

BATTERY MODULE RATED CAPACITY

BATTERY MODULE ELECTRIC QUANTITY

BATTERY MODULE RECOMMENDED CHARGING CURRENT

BATTERY MODULE MAXIMUM CONTINUOUS CHARGE/DISCHARGE CURRENT

BATTERY MODULE DISPLAY METHOD

BATTERY MODULE COMMUNICATION

BATTERY MODULE CHARGING TEMPERATURE

BATTERY MODULE DISCHARGING TEMPERATURE

BATTERY MODULE ENVIRONMENT

BATTERY MODULE RELATIVE HUMIDITY

BATTERY MODULE COOLING METHOD

BATTERY MODULE CELL TECHNOLOGY

BATTERY MODULE CYCLE LIFE

BATTERY MODULE IP RATING

BATTERY MODULE CERTIFICATES

BATTERY MODULE

BATTERY MODULE NOMINAL VOLTAGE

BATTERY MODULE NOMINAL ENERGY

BATTERY MODULE DIMENSIONS (W × D × H)

BATTERY MODULE WEIGHT

SYSTEM CONFIGURATION

NOMINAL ENERGY PER CLUSTER

RECOMMENDED CHARGE/DISCHARGE C-RATE

MAXIMUM CHARGE/DISCHARGE C-RATE

PEAK DISCHARGE CURRENT AT 25°C

CELL BALANCING

MAXIMUM PARALLEL SYSTEM CAPACITY

FIRE SUPPRESSION

RELATIVE HUMIDITY

MAXIMUM OPERATING ALTITUDE

BATTERY MODEL

BATTERY PACK ENERGY

RACK CONFIGURATION

NUMBER OF RACKS

RATED CHARGING POWER

RATED DISCHARGING POWER

INVERTER RATED POWER

INTERNAL RESISTANCE

SELF-DISCHARGE

MAXIMUM CONTINUOUS DISCHARGE CURRENT

DISCHARGE CUT-OFF VOLTAGE

RECOMMENDED CHARGE CURRENT

MAXIMUM CHARGING CURRENT

MAXIMUM CHARGE VOLTAGE

NET / GROSS WEIGHT

TERMINAL TYPE

CASE MATERIAL

CELL FORM / ENCLOSURE

BMS HIGH TEMPERATURE

RECONNECT TEMPERATURE

CHARGING VOLTAGE

CONTINUOUS DISCHARGE CURRENT

MAXIMUM DISCHARGE CURRENT (20 MIN)

LOW-TEMPERATURE HEATING

MAXIMUM PARALLEL BATTERIES

OPERATING HUMIDITY

STORAGE CONDITIONS (<1 MONTH)

STORAGE CONDITIONS (<6 MONTHS)

MAXIMUM DIMENSIONS (L × W × H)

DISCHARGE CAPACITY

DISCHARGE DURATION AT 20 A

LOW-TEMPERATURE CHARGE-CURRENT REFERENCE

STANDARDS / DOCUMENTS LISTED IN DATASHEET

CHARGING CURRENT (STANDARD / FAST)

CHARGING CUT-OFF VOLTAGE

HEATING POWER (OPTIONAL)

WEIGHT (COUNTERWEIGHT)

DISPLAY FUNCTION

COMPATIBLE FORKLIFTS

FORKLIFT LOAD CAPACITY

OPTIONAL CHARGER

FEATURES

Scalable

Up to 20units

Expansion Function

Single-pack level heat aerosol fire extinguishing device / Heating function / Bluetooth / Wheels (optional)

IP Rating

IP65

Installation

Wall mount or floor

COMPATIBLE INVERTER BRANDS

PRODUCT DETAILS

Description

The W10 – 5A is a solar lithium battery for home use. Its intelligent Battery Management System (BMS) can monitor and optimize battery performance in real – time, extend its service life, and enable remote control via a mobile app, making it convenient for you to track your home's energy situation. It is easy to install, and the wall – mounted design saves space. In case of an emergency, it can serve as a power bank to supply power to home appliances, adapting to various scenarios.

Features

Scalable: Up to 20units
Expansion Function: Single-pack level heat aerosol fire extinguishing device / Heating function / Bluetooth / Wheels (optional)
IP Rating: IP65
Installation: Wall mount or floor
