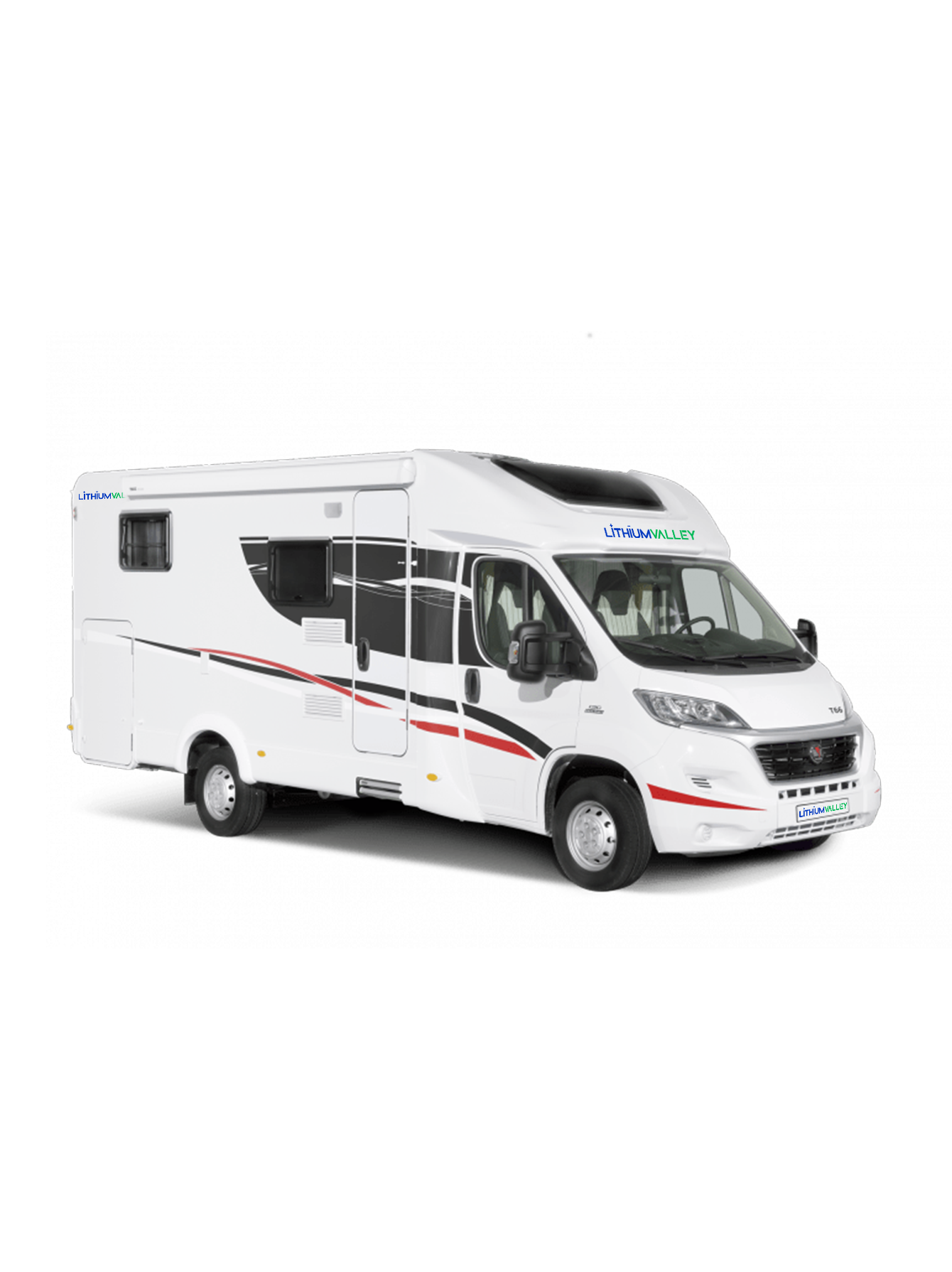

12V RV System
RV System is designed for RVs, engineering vehicles, and specialty vehicles, integrating display, control, monitoring, alerts, and protection. Through a user-friendly interface, users can easily monitor system components, receive alerts, control lights, devices, and loads, and personalize settings. It is easy to install, simple to operate, and ensures safety and reliability for enhanced user satisfaction.
SMILE5 Series system is the bestseller of AlphaESS. It is available for DC-coupling, AC-coupling and hybrid-coupling connection and working with multiple battery options including 2.9kWh, 5.7kWh, 10.1kWh and 13.3kWh battery module. With VPP value stacked, it would be the best choice for householders.
12V RV System
RV System is designed for RVs, engineering vehicles, and specialty vehicles, integrating display, control, monitoring, alerts, and protection. Through a user-friendly interface, users can easily monitor system components, receive alerts, control lights, devices, and loads, and personalize settings. It is easy to install, simple to operate, and ensures safety and reliability for enhanced user satisfaction.
01
Charging and Inverting Integrated Machine
- Rated voltage: 12V
- Rated power: 3000W
- Maximum charging current: 90A
- Inverter efficiency: 90%
- Static power consumption: <25W
02
MPPT
- Input voltage range:14.5 - 45VDC
- Maximum charging power: 775W
- Charging efficiency: 95%
03
DCDC
- Input voltage range:13.2 - 16VDC
- Maximum charging current: 50A
- Charging efficiency: 95%
04
Lithium Battery
- Rated voltage: 12.8V
- Rated capacity: 400Ah
- Maximum discharge current: 350A
- Maximum charging current: 200A
- With low-temperature heating function
- With parallel connection function
- Cycle life ≥ 4000 times
05
12V Multi-function Module
- Total input current: 100A
- 4 channels of water level acquisition
- 6 channels of temperature acquisition
- 8 channels of dry contact output
- 15 load channels
06
Control Panel
- System information display
- Load control
- Personalized settings
- Operating temperature:-20°C to 70°C
07
Water Level Sensor
- Length can be customized
- 10 levels of water level acquisition
- Operating temperature:-35°C to 85°C
08
APP
- System information display
- Remote load control
- Personalized settings
FEATURES
Visualization
The displayed content is detailed and rich.
Flexibility
The system configuration is flexible and can be set.
Integration
The module design is highly integrated.
Performance
The system's software and hardware are stable and reliable.
